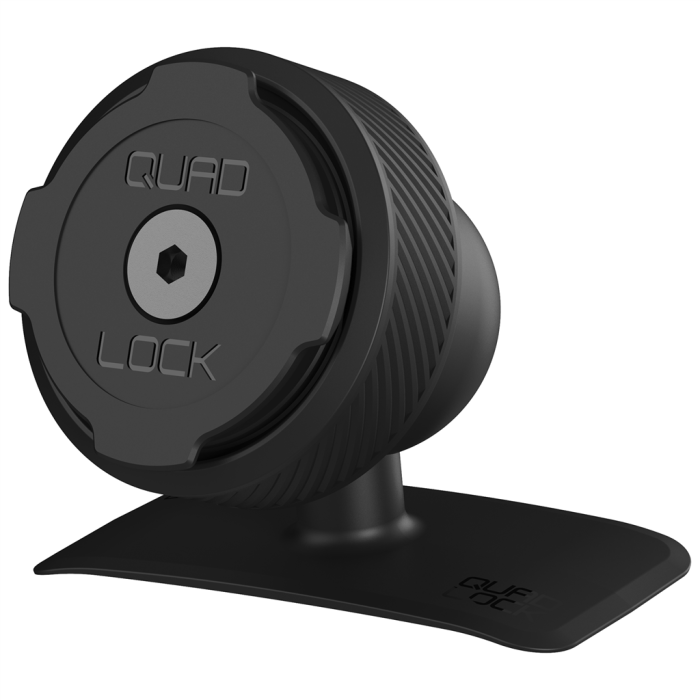

Quad Lock Dash/Console Car Mount

General Features

FEATURES:

• Low Profile & Adjustable Mount for your Car Dash or Console
• Flexible 3M VHB Adhesive base which can bond to flat or slightly curved surfaces
• Portrait or Landscape Mounting for Optimal Viewing
• Single pivot ball allows 180° head articulation (Z axis) and 360° rotation around the base
• Rubber knurled locking nut provides better grip to tighten / loosen
• Temperature Resistance: 149°C (300°F) long term / 93°C (200°F) short term
• Upgrade to Quad Lock Wireless Charging or MAG Heads

COMPATIBLE WITH:

• Compatible with all Quad Lock cases and Universal Adaptors
• Quad Lock MAG & Wireless Charging Heads (Quad Lock® MAG Standard Head, Quad Lock® Wireless Charging Head, Quad Lock® MAG Wireless Charging Head)

3M ADHESIVE SUITABILITY:

• Recommended Substrates:
• Smooth, non-porous, non-textured surfaces such as;
• Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. Car dash, console)
• Un-coated glass (eg. Windshield)
• Metals
• Non-Recommended Substrates:
• Rubber, TPU, TPE
• Leather
• Silicone
• Soft touch coating or paint
• Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
• Application Temperature:
• Ideal application temperature: 21°C (70°F) to 38°C (100°F)
• Not recommended application temperature: Below 10°C (50°F)
• It is not recommended for use on Motorcycles, Scooters, ATV’s or other high
frequency engine vibration applications

PRODUCT WEIGHT (KG):

• 0.041

MATERIALS:

• BASE - GF Nylon (PA66+14GF)
• BALL OVERMOULD - TPU 80ShA
• LOCKING NUT - GF Nylon (PA66+14GF) + TPU 80ShA
• TOP CAP - GF Nylon (PA66+14GF)
• REVERSE SINGLE PIVOT DOME - 30% Glass Filled Polycarbonate (PC+30GF)
• REVERSE SINGLE PIVOT BASE - PC+ABS
• ADHESIVE - 3M 5611 - 1.1mm THICK

INCLUDED IN BOX:

• 1 x Quad Lock Dash/Console Car Mount with Top Cap
• 1 x Spare 3M VHB 5611, pre-cut to size Adhesive pad
• 1 x Isopropyl Alcohol prep pad

SPARE PARTS:

• Replacement Adhesive with Alcohol Prep Pad (Quad Lock® Replacement Adhesive - Adhesive Car Mount)

SAFETY:

• Ensure the mount does not interfere with essential vehicle operation (steering, airbags, braking, etc)
• Recommend NOT to mount in a position that may obstruct driver’s view

MEASUREMENTS:

• 59.5mm L x 39mm W x 45mm
